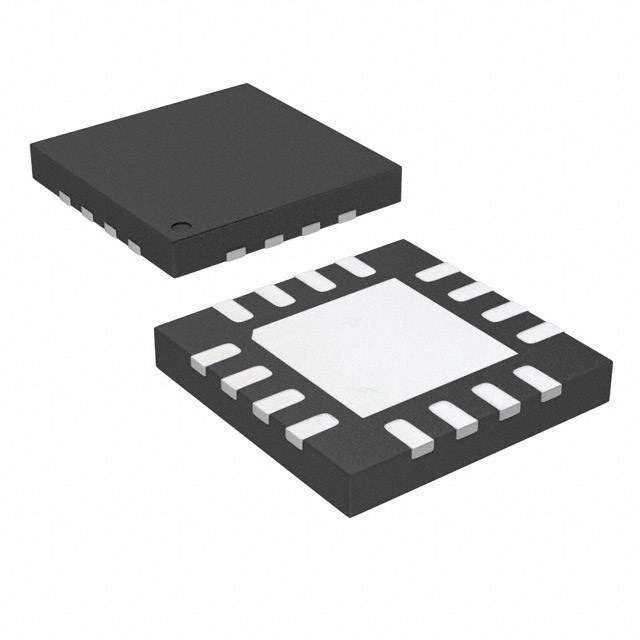

LT6402CUD-6#TRPBF

SKU: 48248

Manufacturer: Analog Devices

SP Amp DIFF AMP Single 5.5V 16-Pin QFN EP T/R

3100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Minimum CMRR Range (dB)	<60
Minimum CMRR (dB)	42
Minimum PSRR (dB)	55
Output Type	Differential
Typical Output Current (mA)	35@5V@0C to 70C
Maximum Input Offset Voltage (mV)	6.5@5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	37@5V@0C to 70C
Maximum Input Resistance (MOhm)	0.00024@5V@0C to 70C
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	16
