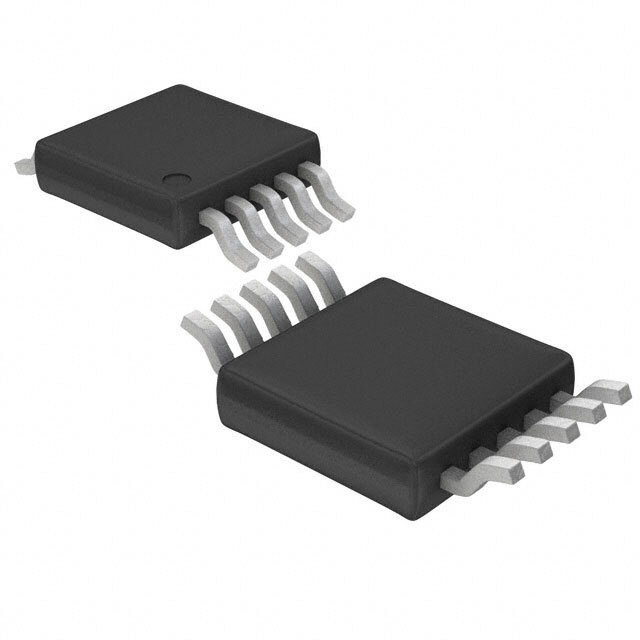

LT6211IMS#PBF

SKU: 30651

Manufacturer: Analog Devices

Op Amp Dual High Speed Amplifier R-R O/P ±6V/12V Automotive 10-Pin MSOP Tube

1780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	6@±5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Maximum Supply Current (mA)	17@±5V
Typical Output Current (mA)	75@±5V@-40C to 85C
Power Supply Type	Single
Typical Slew Rate (V/us)	700@±5V
Typical Input Noise Voltage Density (nV/rtHz)	6.5@±5V
Typical Inverting Input Current Noise Density (pA/rtHz)	25@±5V
Typical Noninverting Input Current Noise Density (pA/rtHz)	4.5@±5V
Minimum PSRR (dB)	60
Minimum CMRR (dB)	46
Minimum CMRR Range (dB)	<50
Typical Settling Time (ns)	20
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	10
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
