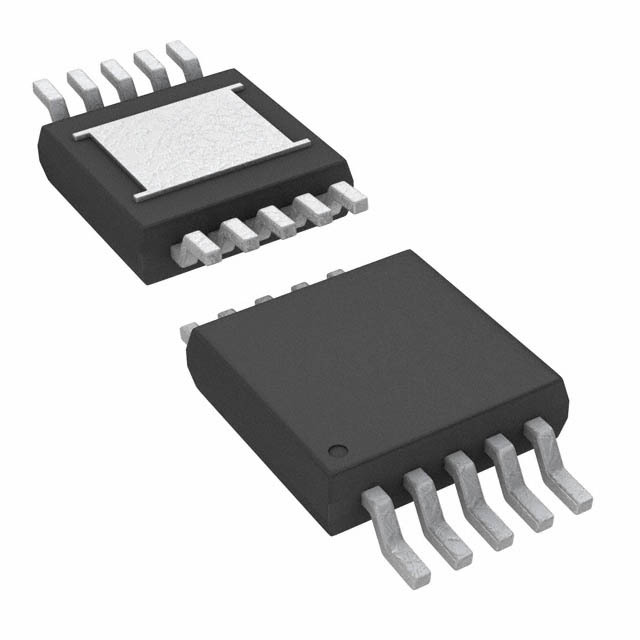

LT3758EMSE

SKU: 140171

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Flyback/Step Up 330kHz Automotive 10-Pin MSOP EP Tube

1140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Flyback
Maximum Switching Frequency (kHz)	330
Minimum Input Voltage (V)	5.5
Maximum Input Voltage (V)	100
Operating Supply Voltage (V)	5.5 to 100
Maximum Supply Current (mA)	2.2
Minimum Switching Frequency (kHz)	270
Typical Switching Frequency (kHz)	300
Synchronous Rectifier	No
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	10
Standard Package Method	SOP
Original Package	MSOP EP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
