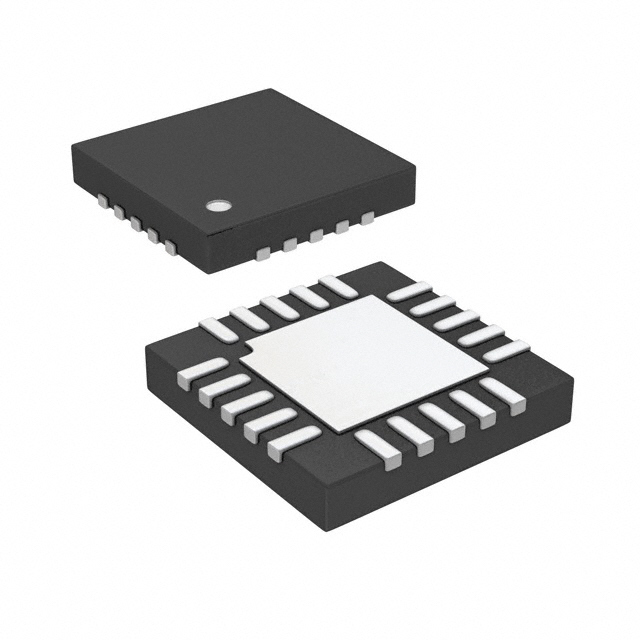

LT3741EUF#PBF

SKU: 76311

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 233kHz Automotive 20-Pin QFN EP Tube

780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0 to 34
Maximum Switching Frequency (kHz)	233
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	6 to 36
Typical Quiescent Current (mA)	0.8
Typical Gate Driver Pull Up Resistance (Ohm)	2.3/2.3
Typical Gate Driver Pull Down Resistance (Ohm)	1.3/1
Minimum Switching Frequency (kHz)	185
Typical Switching Frequency (kHz)	200
Synchronous Rectifier	No
Synchronous Clock	No
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	20
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	4
PCB changed	20
