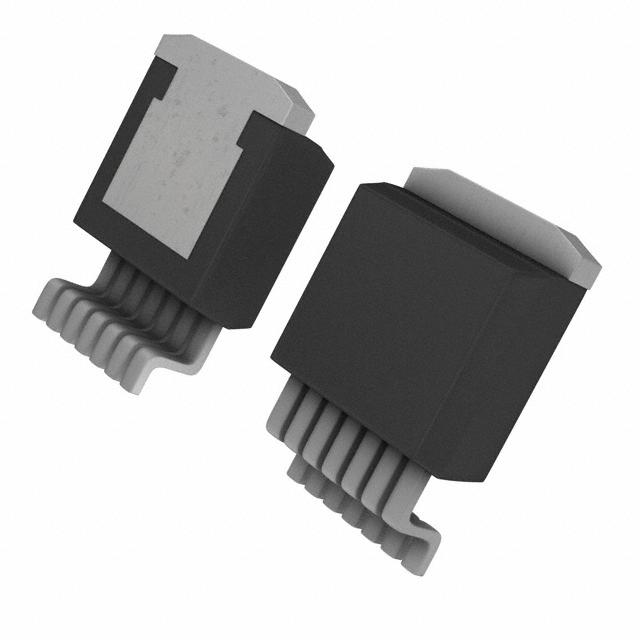

LT3086ER#PBF

SKU: 158059

Manufacturer: Analog Devices

LDO Regulator Pos 0.4V to 32V 2.1A Automotive 8-Pin(7+Tab) DDPAK Tube

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	0.4 to 32
Maximum Output Current (A)	2.1
Minimum Input Voltage (V)	1.4
Maximum Input Voltage (V)	40
Maximum Dropout Voltage @ Current (V)	0.065@1mA
Reference Voltage (V)	0.404
Line Regulation	0.8mV
Load Regulation	1mV
Junction to Ambient	29°C/W
Junction to Case	3°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	DDPAK
Pin Count	8
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.54(Max)
Package Width	9.4(Max)
PCB changed	7
Tab	Tab
