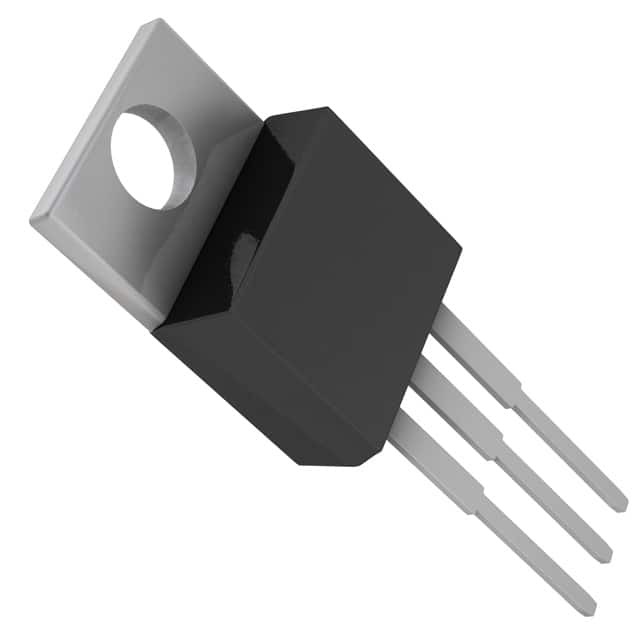

LT1086IT-12

SKU: 76151

Manufacturer: Analog Devices

LDO Regulator Pos 12V 1.5A 3-Pin(3+Tab) TO-220

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	12
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	2.55
Maximum Input Voltage (V)	25
Maximum Dropout Voltage @ Current (V)	1.5@1.5A
Line Regulation	25mV
Load Regulation	36mV
Maximum Quiescent Current (mA)	10
Junction to Ambient	50°C/W
Junction to Case	4°C/W
Special Features	Safe Area Protection
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Industrial
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.54(Max)
Package Width	4.57(Max)
PCB changed	3
