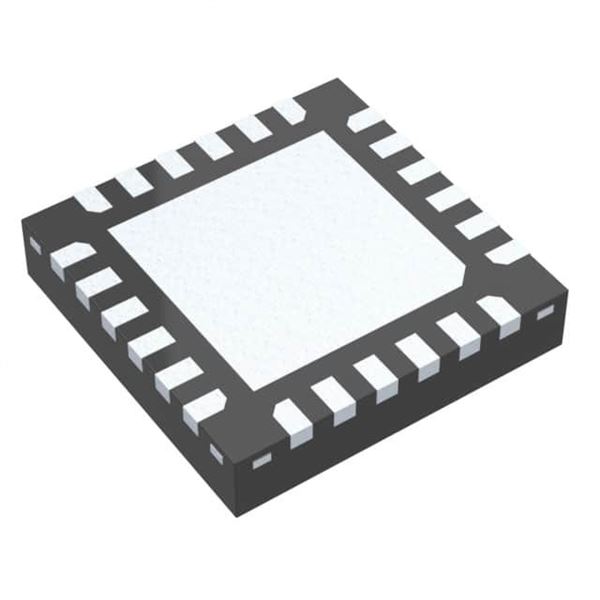

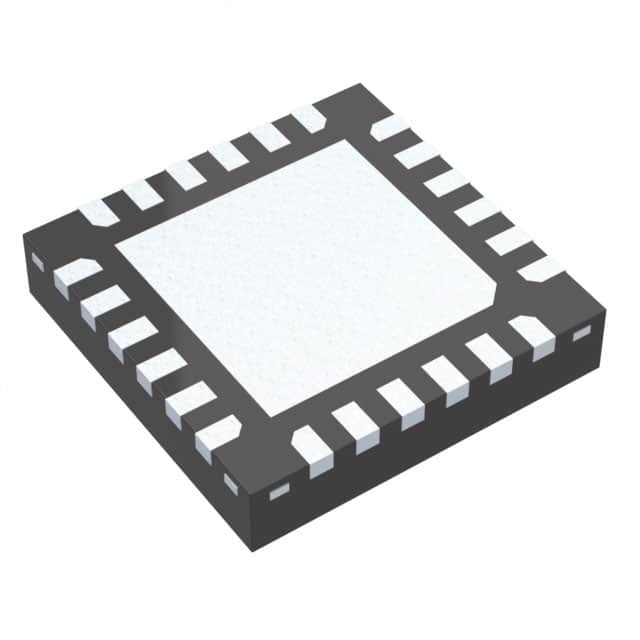

HMC736LP4E

SKU: 143644

Manufacturer: Analog Devices

Oscillator VCO 7250MHz to 7500MHz/ 14500MHz to 15000MHz 4.2V 24-Pin QFN EP SMD T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	7250
Upper Frequency (MHz)	7500
Output Frequency (MHz)	7250 to 7500
Frequency Range (MHz)	7250 to 7500
Typical Phase Noise (dBc/Hz)	-105@100KHz
Operating Supply Voltage-Min (V)	4
Operating Supply Voltage-Max (V)	4.4
Typical Operating Supply Voltage (V)	4.2
Tuning Voltage (V)	1 to 13
Maximum Supply Current (mA)	180
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	24
