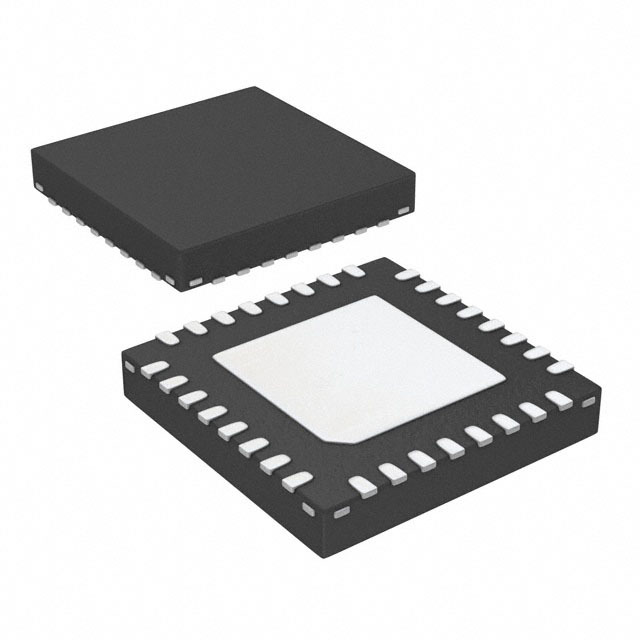

HMC734LP5E

SKU: 58833

Manufacturer: Analog Devices

Oscillator VCO 2150MHz to 2550MHz/ 8600MHz to 10200MHz 5V 32-Pin QFN EP SMD T/R

3800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	2150
Upper Frequency (MHz)	2550
Output Frequency (MHz)	2150 to 2550
Frequency Range (MHz)	2150 to 2550
Typical Phase Noise (dBc/Hz)	-100@100KHz
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Typical Operating Supply Voltage (V)	5
Tuning Voltage (V)	1 to 13
Maximum Supply Current (mA)	240
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.1(Max)
Package Width	5.1(Max)
PCB changed	32
