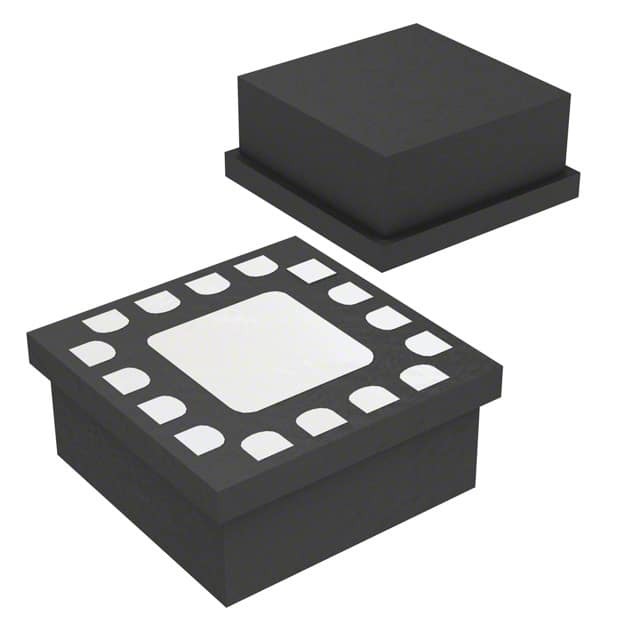

HMC674LC3CTR

SKU: 37534

Manufacturer: Analog Devices

Comparator Single -2.85V/3.465V 16-Pin CQFN EP T/R

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Latching Comparator
Number of Channels per Chip	1
Rail to Rail	No
Typical PSRR (dB)	38
Maximum Propagation Delay Time (ns)	0.11
Operating Supply Voltage-Max (V)	-2.85
Maximum Input Offset Voltage (mV)	5(Typ)@3.3V/-3V
Minimum Dual Supply Voltage (V)	-3.15
Typical Dual Supply Voltage (V)	-3
Maximum Dual Supply Voltage (V)	-2.85
Maximum Input Bias Current (uA)	15(Typ)@3.3V/-3V
Maximum Supply Current (mA)	9(Typ)
Typical Output Current (mA)	40(Max)
Maximum Power Dissipation (mW)	816
Power Supply Type	Dual
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	QFN
Original Package	CQFN EP
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.31(Max)
Package Length	3
Package Width	3
PCB changed	16
