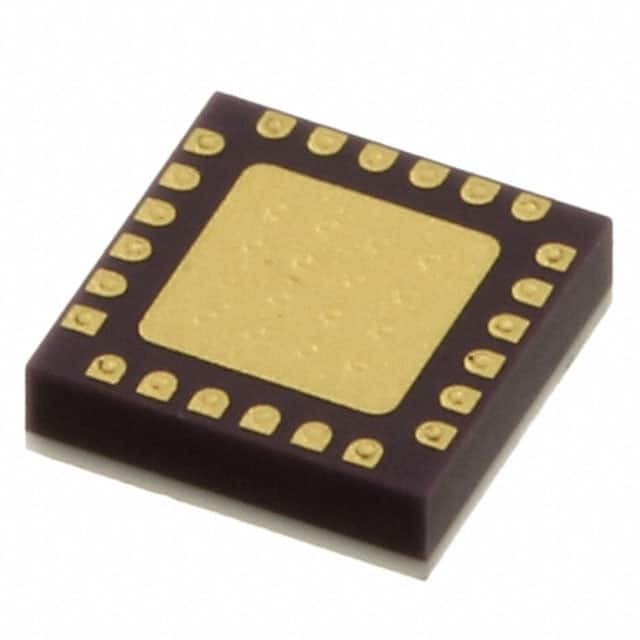

HMC613LC4B

SKU: 129448

Manufacturer: Analog Devices

RF Amp Single General Purpose RF Amplifier 20GHz 3.6V 24-Pin CLLCC EP T/R

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	General Purpose RF Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	20000
Typical Gain Flatness (dB)	±1.5
Maximum Input Return Loss (dB)	8(Typ)@20000MHz
Operating Supply Voltage-Max (V)	3.6
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	80(Typ)@3.3V
Power Supply Type	Single
Maximum Power Dissipation (mW)	460
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	CLLCC EP
Pin Count	24
Terminal Form	Surface Mount
Package Height	1.02(Max)
Package Length	4
Package Width	4
