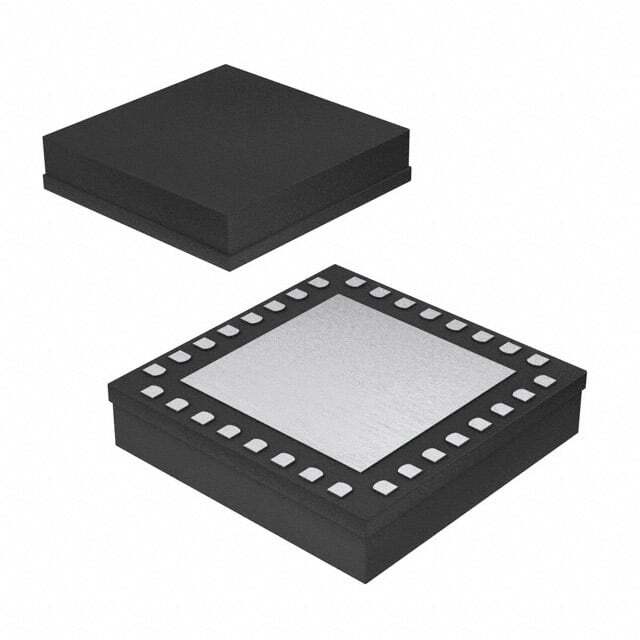

HMC606LC5

SKU: 30418

Manufacturer: Analog Devices

RF Amp Single LNA 18GHz 7V 32-Pin CLLCC EP Cut Tape

1480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	18000
Typical Gain Flatness (dB)	±1
Typical Power Gain (dB)	12.5@18000MHz
Typical Output Power (dBm)	13@18000MHz
Typical Output Intercept Point (dBm)	22@18000MHz
Maximum Input Return Loss (dB)	18(Typ)@18000MHz
Maximum Output Return Loss (dB)	15(Typ)@18000MHz
Typical Noise Figure (dB)	7@18000MHz
Operating Supply Voltage-Max (V)	7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	7
Maximum Supply Current (mA)	95@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	978
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Pin Count	32
Standard Package Method	LLCC
Original Package	CLLCC EP
Terminal Form	Surface Mount
Package Height	1
Package Length	4.9
Package Width	4.9
PCB changed	32
