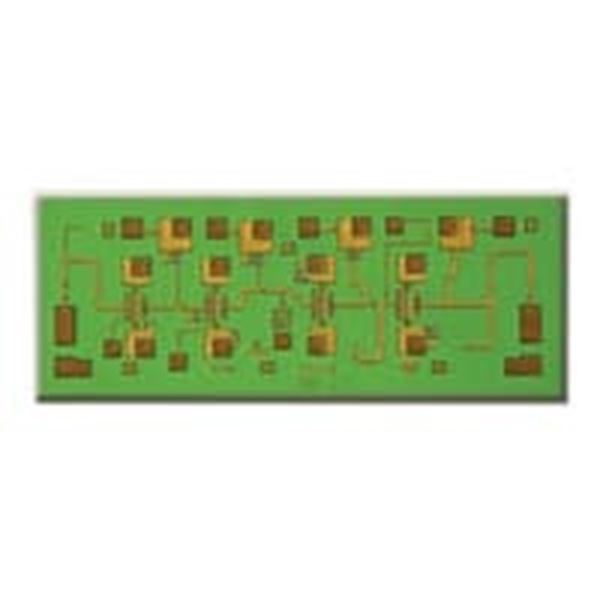

HMC566

SKU: 86964

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 36GHz 3.5V 6-Pin Die Tray

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.b.2.d
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	36000
Typical Power Gain (dB)	22@36000MHz
Typical Output Power (dBm)	12@36000MHz
Typical Output Intercept Point (dBm)	23.5@36000MHz
Maximum Input Return Loss (dB)	15(Typ)@36000MHz
Maximum Output Return Loss (dB)	8(Typ)@36000MHz
Typical Noise Figure (dB)	2.8@36000MHz
Operating Supply Voltage-Max (V)	3.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.5
Maximum Supply Current (mA)	80(Typ)@3V
Power Supply Type	Single
Maximum Power Dissipation (mW)	820
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	6
Package Height	0.1
Package Length	2.54
Package Width	0.98
