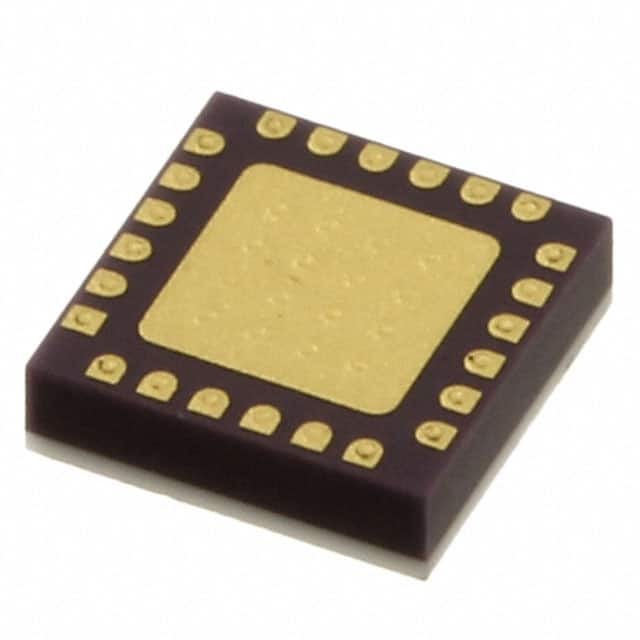

HMC564LC4TR

SKU: 33101

Manufacturer: Analog Devices

RF Amp Single LNA 14GHz 3.5V 24-Pin CLLCC EP T/R

230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	14000
Typical Power Gain (dB)	17@14000MHz
Typical Output Power (dBm)	13@14000MHz
Typical Output Intercept Point (dBm)	25@14000MHz
Maximum Input Return Loss (dB)	15(Typ)@14000MHz
Maximum Output Return Loss (dB)	14(Typ)@14000MHz
Typical Noise Figure (dB)	1.8@14000MHz
Operating Supply Voltage-Max (V)	3.5
Typical Dual Supply Voltage (V)	3
Maximum Dual Supply Voltage (V)	3.5
Maximum Supply Current (mA)	75@3V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1160
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	LLCC
Original Package	CLLCC EP
Terminal Form	Surface Mount
Package Height	0.9
Package Length	3.9
Package Width	3.9
PCB changed	24
