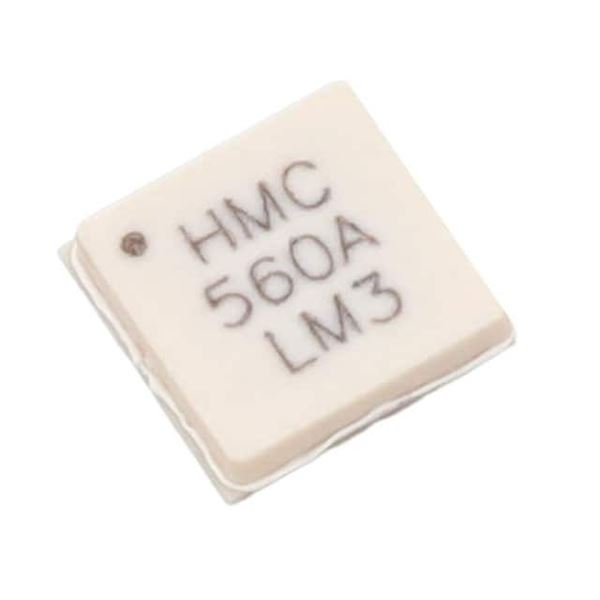

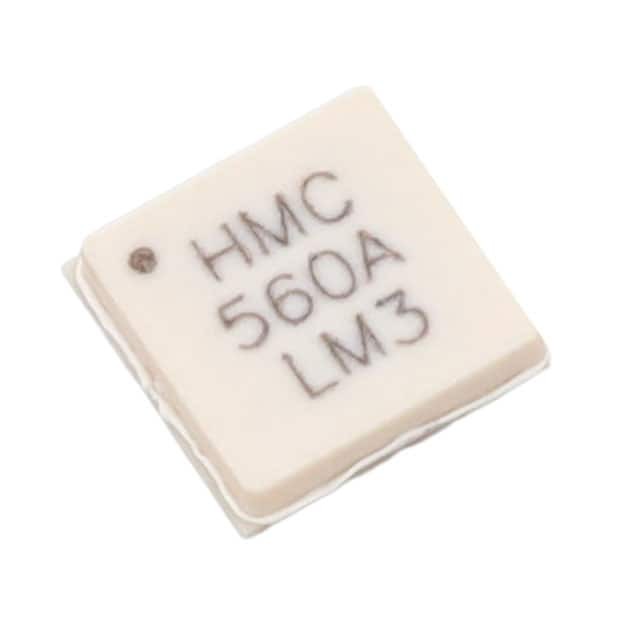

HMC560ALM3

SKU: 136572

Manufacturer: Analog Devices

Up/Down Conv Mixer 40GHz 6-Pin LGA EP T/R

1030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	24000
Maximum Input Frequency (MHz)	40000
Minimum Output Frequency (MHz)	0
Maximum Output Frequency (MHz)	17000
Maximum Conversion Loss (dB)	14
Typical Noise Figure (dB)	11
Typical LO/RF Isolation (dB)	35
Typical Third Order Input Intercept Point (dBm)	21
Maximum Power Dissipation (mW)	344
Operating Temperature-Min	-55
Operating Temperature-Max	85
Original Package	LGA EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	1.01
Package Length	5.08
Package Width	5.08
