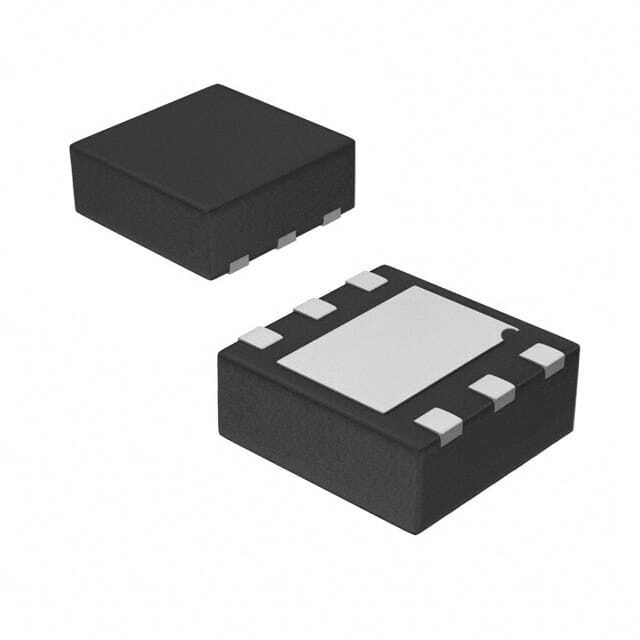

HMC546LP2E

SKU: 26003

Manufacturer: Analog Devices

RF Switch SPDT 200MHz to 2.7GHz 10dB Automotive 6-Pin DFN EP T/R

2760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	21(Typ)
Frequency Band (MHz)	200 to 2700
Maximum Frequency (MHz)	2700
Minimum Isolation Voltage (dB)	10
Maximum Insertion Loss (dB)	1.1
Technology	GaAs
Operating Supply Voltage-Max (V)	10
Maximum Power Dissipation (mW)	1120
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.05(Max)
Package Width	2.05(Max)
PCB changed	6
