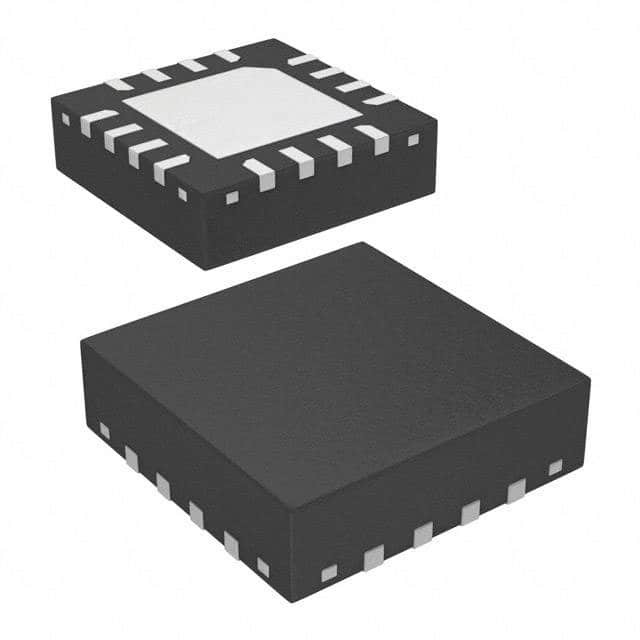

HMC539LP3ETR

SKU: 96723

Manufacturer: Analog Devices

5Bit 0.25dBStep 7.75dB 4GHz 16-Pin QFN EP T/R

5080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Bits	5
Attenuator Step Size (dB)	0.25
Maximum Attenuation (dB)	7.75(Typ)
Minimum Frequency (MHz)	0
Maximum Frequency (MHz)	4000
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (A)	0.0037
Maximum Power Dissipation (mW)	781
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	16
