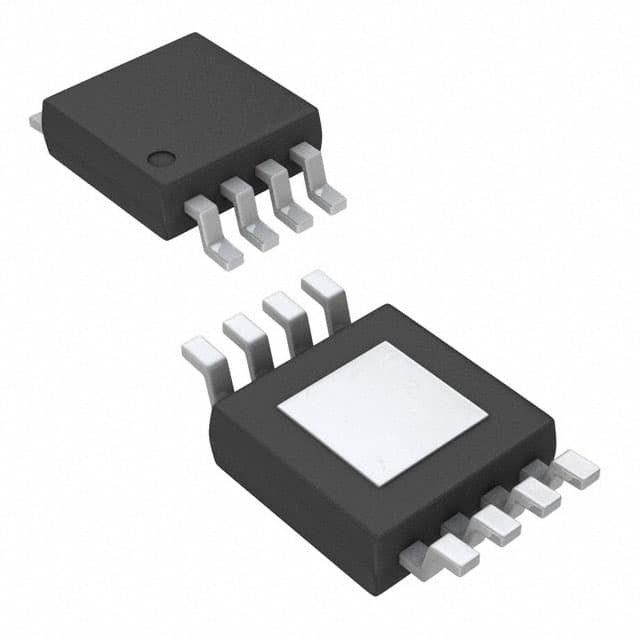

HMC435AMS8GE

SKU: 33096

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 4GHz 30dB 8-Pin MSOP EP Cut Tape

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Dual SPDT
Number of Switches	2
Switching Speed (ns)	40(Typ)
Frequency Band (MHz)	0 to 4000
Maximum Frequency (MHz)	4000
Minimum Isolation Voltage (dB)	30
Maximum Insertion Loss (dB)	1.8
Typical Input 1dB Compressed Power (dBm)	30
Technology	GaAs MESFET
High Control Voltage (V)	5
Maximum Power Dissipation (mW)	860
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Pin Count	8
Original Package	MSOP EP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
