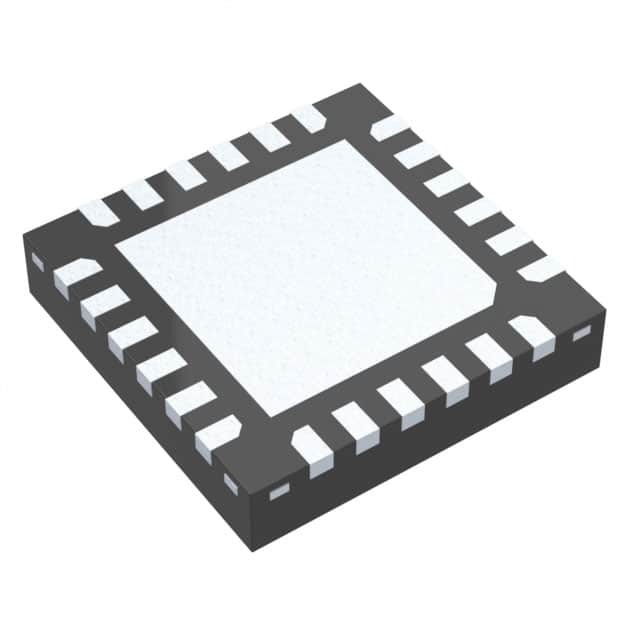

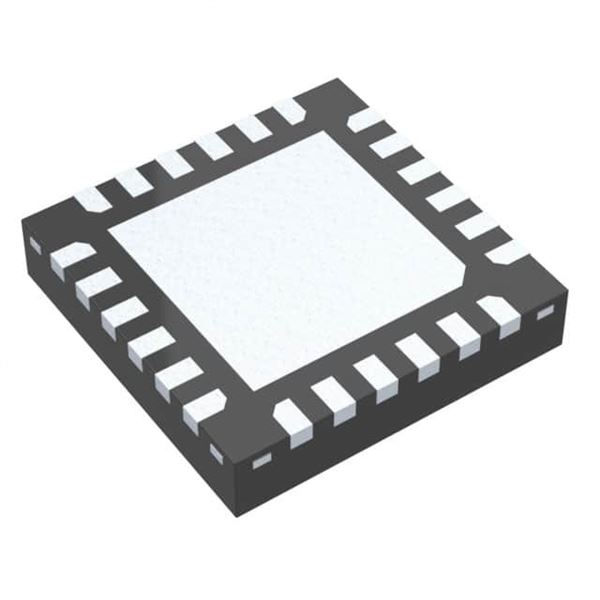

HMC391LP4

SKU: 65838

Manufacturer: Analog Devices

Oscillator VCO 3900MHz to 4450MHz 3V 24-Pin QFN EP SMD T/R

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	3900
Upper Frequency (MHz)	4450
Output Frequency (MHz)	3900 to 4450
Frequency Range (MHz)	3900 to 4450
Typical Phase Noise (dBc/Hz)	-106@100KHz
Operating Supply Voltage-Max (V)	3.5
Typical Operating Supply Voltage (V)	3
Tuning Voltage (V)	0 to 10
Maximum Supply Current (mA)	40
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	24
