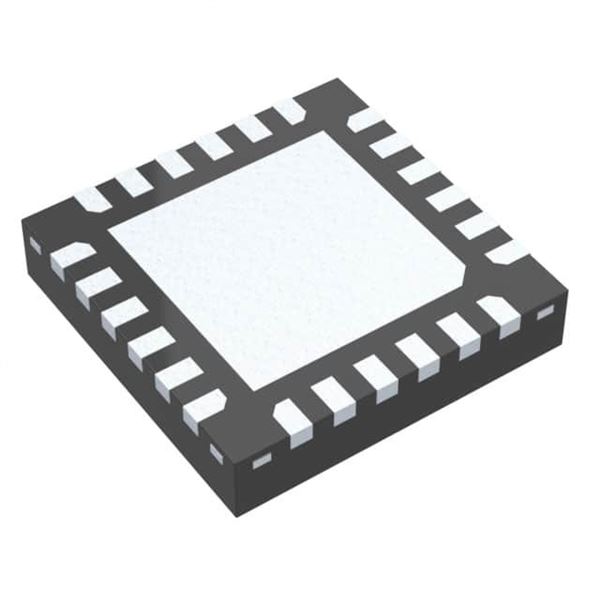

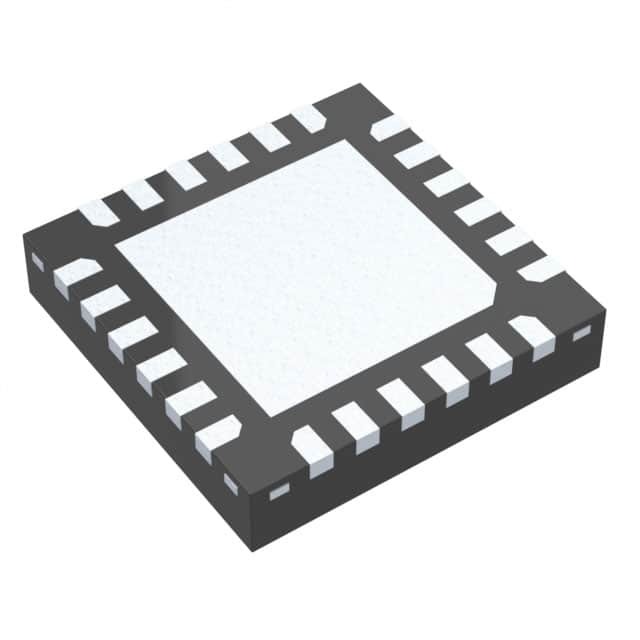

HMC390LP4

SKU: 136569

Manufacturer: Analog Devices

Oscillator VCO 3550MHz to 3900MHz 3V 24-Pin QFN EP SMD T/R

1360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	3550
Upper Frequency (MHz)	3900
Output Frequency (MHz)	3550 to 3900
Frequency Range (MHz)	3550 to 3900
Typical Phase Noise (dBc/Hz)	-112@100KHz
Operating Supply Voltage-Max (V)	3.5
Typical Operating Supply Voltage (V)	3
Tuning Voltage (V)	0 to 10
Maximum Supply Current (mA)	42(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	24
