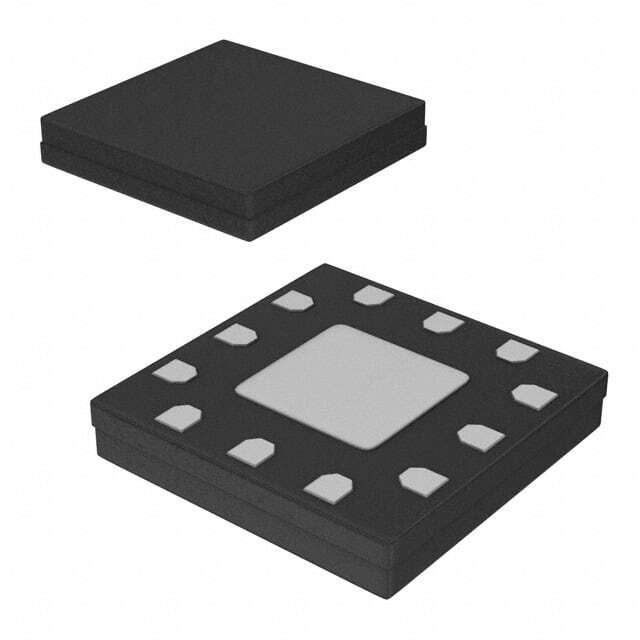

HMC260ALC3B

SKU: 44633

Manufacturer: Analog Devices

Up/Down Conv Mixer 26GHz 12-Pin CLLCC T/R

1710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	10000
Maximum Input Frequency (MHz)	26000
Minimum Output Frequency (MHz)	0
Maximum Output Frequency (MHz)	8000
Maximum Conversion Loss (dB)	12
Typical Noise Figure (dB)	10
Typical LO/RF Isolation (dB)	40
Typical Third Order Input Intercept Point (dBm)	23
Maximum Power Dissipation (mW)	260
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	LCC
Original Package	CLLCC
Pin Count	12
Terminal Form	Surface Mount
Package Height	0.8
Package Length	2.9
Package Width	2.9
PCB changed	12
