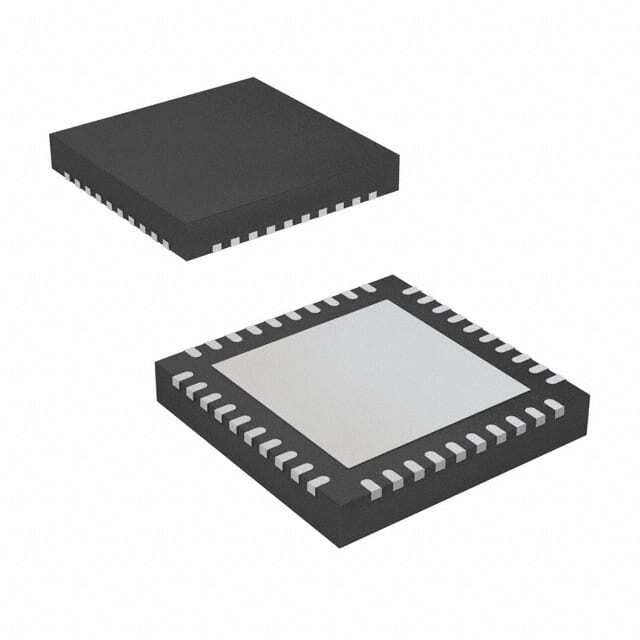

HMC1190ALP6NE

SKU: 108100

Manufacturer: Analog Devices

Up/Down Conv Mixer 3.3V/5V 3.8GHz 40-Pin LFCSP EP T/R

2260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	700
Maximum Input Frequency (MHz)	3800
Minimum Output Frequency (MHz)	50
Maximum Output Frequency (MHz)	350
Maximum Conversion Gain (dB)	9.1(Typ)
Typical Noise Figure (dB)	10
Typical Third Order Input Intercept Point (dBm)	28.3
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	CSP
Original Package	LFCSP EP
Pin Count	40
Terminal Form	Surface Mount
Package Height	0.83
Package Length	6
Package Width	6
PCB changed	40
