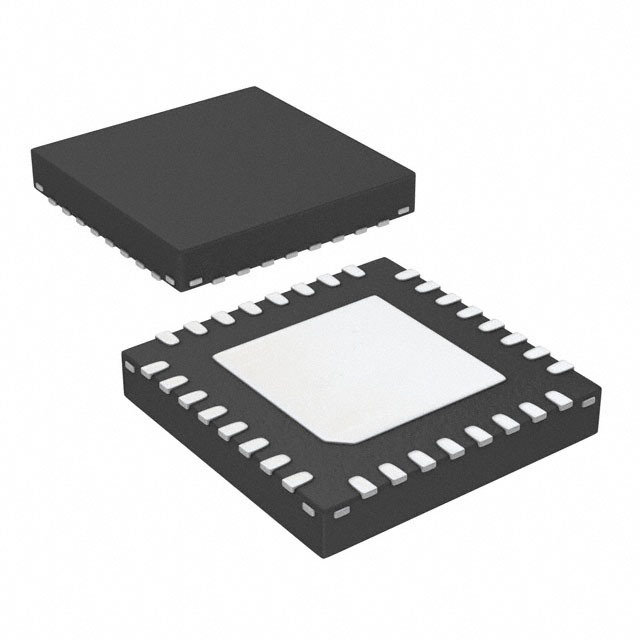

HMC1164LP5E

SKU: 37518

Manufacturer: Analog Devices

Oscillator VCO 5190MHz to 5650MHz/ 10380MHz to 11300MHz 5V 32-Pin LFCSP EP SMD T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	5190
Upper Frequency (MHz)	5650
Output Frequency (MHz)	5190 to 5650
Frequency Range (MHz)	5190 to 5650
Typical Phase Noise (dBc/Hz)	-114@100KHz
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Tuning Voltage (V)	2 to 13
Maximum Supply Current (mA)	290
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	32
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
PCB changed	32
