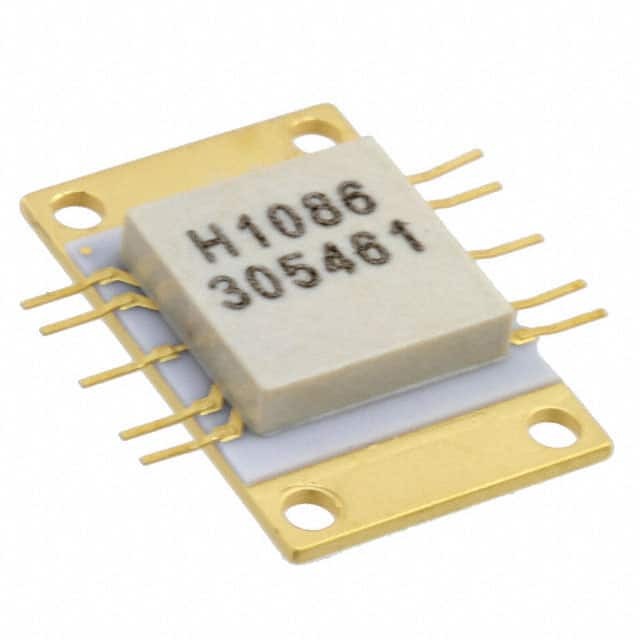

HMC1086F10

SKU: 146343

Manufacturer: Analog Devices

RF Amp Single Power Amp 6GHz 32V 10-Pin Tray

1890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.b.2.a.4
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	6000
Typical Gain Flatness (dB)	±0.5
Typical Power Gain (dB)	24@6000MHz
Typical Output Power (dBm)	44.5@6000MHz
Typical Power Added Efficiency (%)	32
Typical Output Intercept Point (dBm)	46@6000MHz
Maximum Input Return Loss (dB)	17(Typ)@6000MHz
Maximum Output Return Loss (dB)	12(Typ)@6000MHz
Maximum Input VSWR	6
Maximum Output VSWR	6
Operating Supply Voltage-Max (V)	32
Maximum Single Supply Voltage (V)	32
Maximum Supply Current (mA)	1100(Typ)@28V
Power Supply Type	Single
Maximum Power Dissipation (mW)	60500
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	10
Terminal Form	Screw
Package Height	2.97
Package Length	17.32
Package Width	11.43
