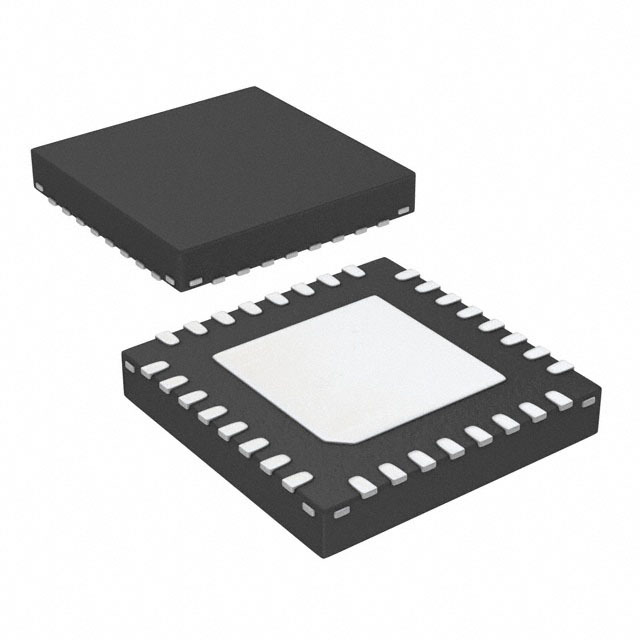

    HMC1049LP5E

    SKU: 150741
    Manufacturer: Analog Devices
    RF Amp Single LNA 20GHz 10V 32-Pin LFCSP EP Cut Tape
    2860 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.33.00.01
    Automotive No
    PPAP No
    Manufacturer Type Low Noise Amplifier
    Number of Channels per Chip 1
    Maximum Operating Frequency (MHz) 20000
    Typical Power Gain (dB) 13@20000MHz
    Typical Output Power (dBm) 13@20000MHz
    Typical Output Intercept Point (dBm) 26@20000MHz
    Maximum Input Return Loss (dB) 14(Typ)@20000MHz
    Maximum Output Return Loss (dB) 13(Typ)@20000MHz
    Typical Noise Figure (dB) 2.7@20000MHz
    Operating Supply Voltage-Max (V) 10
    Typical Single Supply Voltage (V) 7
    Maximum Single Supply Voltage (V) 10
    Maximum Supply Current (mA) 70(Typ)@5V
    Power Supply Type Single
    Maximum Power Dissipation (mW) 3340
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Cut Tape
    Pin Count 32
    Standard Package Method CSP
    Original Package LFCSP EP
    Terminal Form Surface Mount
    Package Height 0.88
    Package Length 5
    Package Width 5
    PCB changed 32
