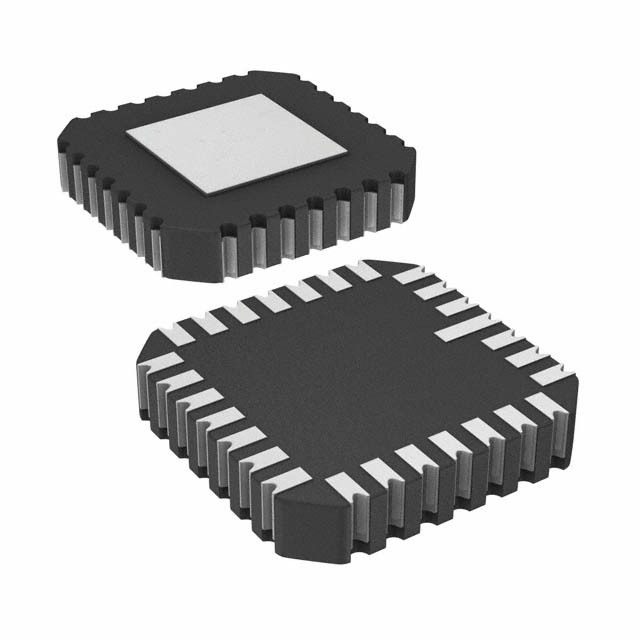

DAC8413BTC/883C

SKU: 16141

Manufacturer: Analog Devices

DAC 4-CH R-2R 12-bit 28-Pin CLLCC Tube

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	12bit
Conversion Rate	167ksps
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	10(Typ)
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±14.25
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±15.75
Power Supply Type	Single
Maximum Power Dissipation (mW)	330
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	±8LSB
Digital Supply Support	Yes
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Supplier Temperature Grade	Military
Original Package	CLLCC
Pin Count	28
Terminal Form	Surface Mount
Package Height	2.54(Max)
Package Length	11.63(Max)
Package Width	11.63(Max)
