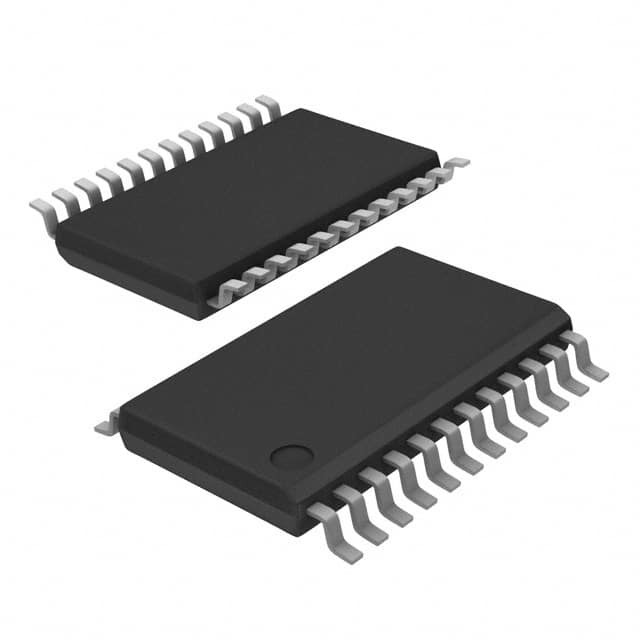

    ADV7127KRUZ50

    SKU: 46110
    Manufacturer: Analog Devices
    DAC 1-CH Segment 10-bit 24-Pin TSSOP Tube
    10 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Converter Type Video
    Architecture Segment
    Resolution 10bit
    Conversion Rate 240Msps
    Number of DAC Channels 1
    Number of Outputs per Chip 1
    Maximum Settling Time (us) 0.015
    Digital Interface Type Parallel
    Output Type Current
    Voltage Reference Internal
    Minimum Single Supply Voltage (V) 3
    Typical Single Supply Voltage (V) 3.3
    Maximum Single Supply Voltage (V) 5.25
    Power Supply Type Single
    Maximum Power Dissipation (mW) 30(Min)
    Integral Nonlinearity Error ±1LSB
    Full Scale Error ±5%FSR
    Digital Supply Support No
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tube
    Supplier Temperature Grade Industrial
    Pin Count 24
    Standard Package Method SOP
    Original Package TSSOP
    Terminal Form Surface Mount
    Package Height 1.05(Max)
    Package Length 7.8
    Package Width 4.4
    PCB changed 24
