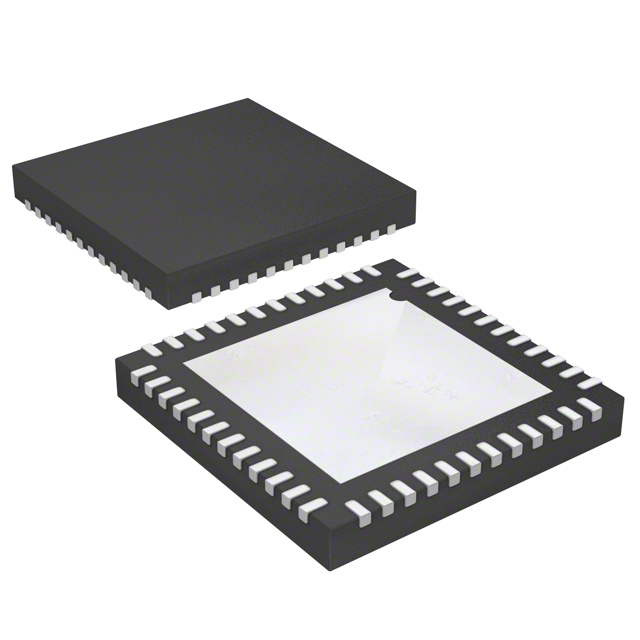

ADUC7030BCPZ-8V

SKU: 81287

Manufacturer: Analog Devices

MCU 32-bit ARM7TDMI RISC 96KB Flash 5V/9V/12V/15V Automotive 48-Pin LFCSP EP

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Family Name	ADuC7xxx
Instruction Set Architecture	RISC
Device Core	ARM7TDMI
Core Architecture	ARM
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	96KB
RAM Size	6KB
Programmability	Yes
Interface Type	SPI/UART
Number of I/Os	9
No. of Timers	3
Timers Resolution (bit)	32
Number of ADCs	Dual
ADC Channels	2
ADC Resolution (bit)	16/16
USART	0
UART	1
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	3.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	18
Operating Temperature-Min	-40
Operating Temperature-Max	115
Original Package	LFCSP EP
Pin Count	48
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	7
Package Width	7
PCB changed	48
