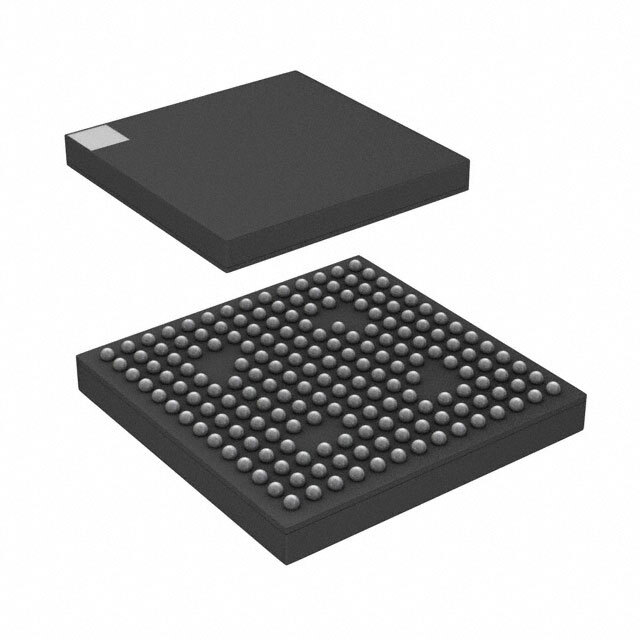

ADSP-BF707BBCZ-3

SKU: 100689

Manufacturer: Analog Devices

DSP 16bit/32bit 300MHz 184-Pin CSP-BGA Tray

2760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ADSP-BF70x
Instruction Set Architecture	Modified Harvard
Data Bus Width (bit)	16
Program Memory Type	ROM
Program Memory Size	512KB
RAM Size	1MB
Programmability	Yes
Interface Type	CAN/I2C/SPI/UART/USB
Number of I/Os	47
Number of ADCs	Single
ADC Channels	4
ADC Resolution (bit)	12
Device Input Clock Speed (MHz)	300
USART	0
UART	2
USB	1
SPI	4
I2C	1
I2S	0
CAN	2
Ethernet	0
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.9
Minimum High Level Output Voltage (V)	0.9
Maximum Low Level Output Voltage (V)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	CSP-BGA
Pin Count	184
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.19
Package Length	12
Package Width	12
PCB changed	184
