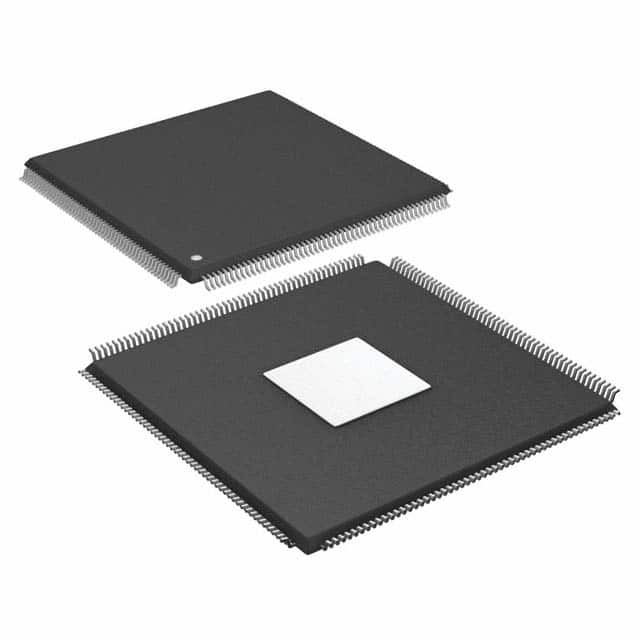

ADSP-21369KSWZ-5A

SKU: 107761

Manufacturer: Analog Devices

DSP Floating-Point 32bit/40bit 366MHz 208-Pin LQFP EP Tray

4030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ADSP-2136x
Instruction Set Architecture	Super Harvard
Numeric and Arithmetic Format	Floating-Point
Data Bus Width (bit)	32
Program Memory Type	ROM
Program Memory Size	768KB
RAM Size	256KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Device Input Clock Speed (MHz)	366
USART	0
UART	2
USB	0
SPI	2
I2C	1
I2S	0
CAN	0
Ethernet	0
Operating Supply Voltage-Min (V)	1.235
Typical Operating Supply Voltage (V)	1.3
Operating Supply Voltage-Max (V)	1.365
Minimum High Level Output Voltage (V)	2.4
Maximum Low Level Output Voltage (V)	0.4
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Original Package	LQFP EP
Pin Count	208
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	28
Package Width	28
PCB changed	208
