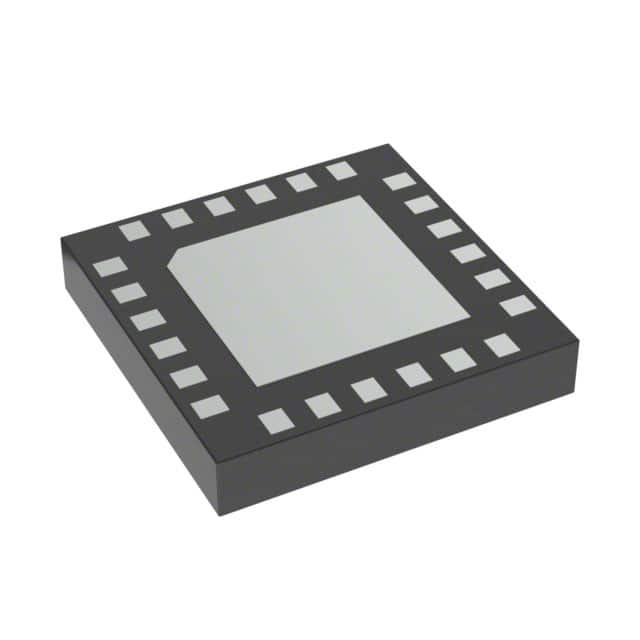

ADRF5730BCCZN-R7

SKU: 79459

Manufacturer: Analog Devices

6Bit 0.5dBStep 31.5dB 40GHz 24-Pin LGA EP T/R

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Bits	6
Attenuator Step Size (dB)	0.5
Maximum Attenuation (dB)	31.5(Typ)
Minimum Frequency (MHz)	100
Maximum Frequency (MHz)	40000
Minimum Setup Time (ns)	15
Minimum Hold Time (ns)	20(Typ)
Operating Supply Voltage-Min (V)	3.15
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.45
Maximum Supply Current (A)	0.000117(Typ)
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	LGA EP
Pin Count	24
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	0.75
Package Length	4
Package Width	4
