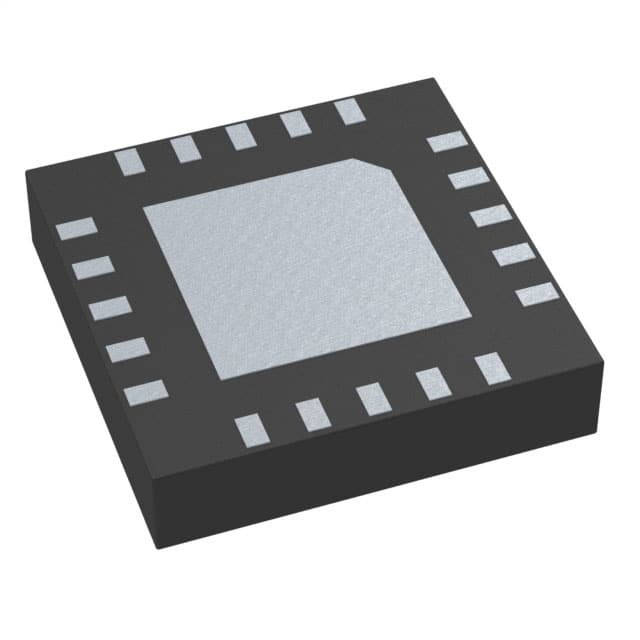

ADRF5026BCCZN

SKU: 121981

Manufacturer: Analog Devices

RF Switch SPDT 100MHz to 44GHz 55dB 20-Pin LGA EP Cut Tape

200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	3(Typ)
Frequency Band (MHz)	100 to 44000
Maximum Frequency (MHz)	44000
Minimum Isolation Voltage (dB)	55(Typ)
Maximum Insertion Loss (dB)	3.8(Typ)
Typical Input 1dB Compressed Power (dBm)	27
Operating Supply Voltage-Min (V)	3.15
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.45
Typical Supply Current (mA)	0.1
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Cut Tape
Original Package	LGA EP
Pin Count	20
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	20
