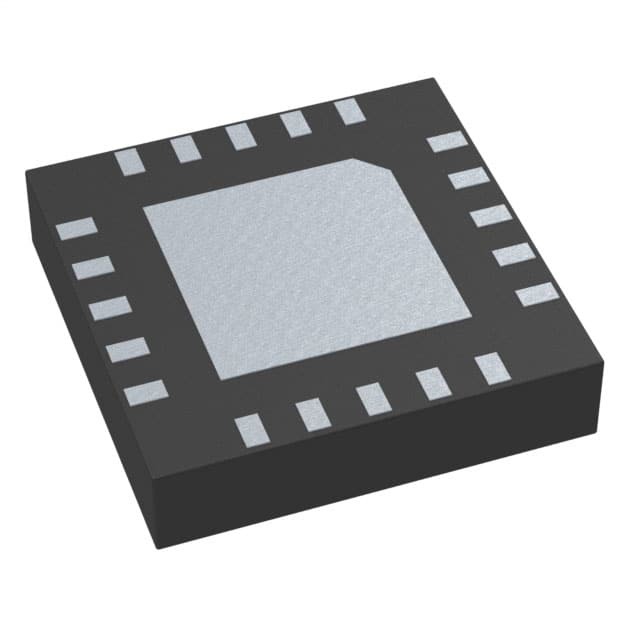

ADRF5021BCCZN

SKU: 100675

Manufacturer: Analog Devices

RF Switch SPDT 0.009MHz to 30GHz 60dB 20-Pin LGA EP T/R

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	1000(Typ)
Frequency Band (MHz)	0.009 to 30000
Maximum Frequency (MHz)	30000
Minimum Isolation Voltage (dB)	60(Typ)
Maximum Insertion Loss (dB)	2(Typ)
Typical Input 1dB Compressed Power (dBm)	28
Technology	CMOS/LVTTL
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.4
Typical Supply Current (mA)	0.1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LGA EP
Pin Count	20
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
