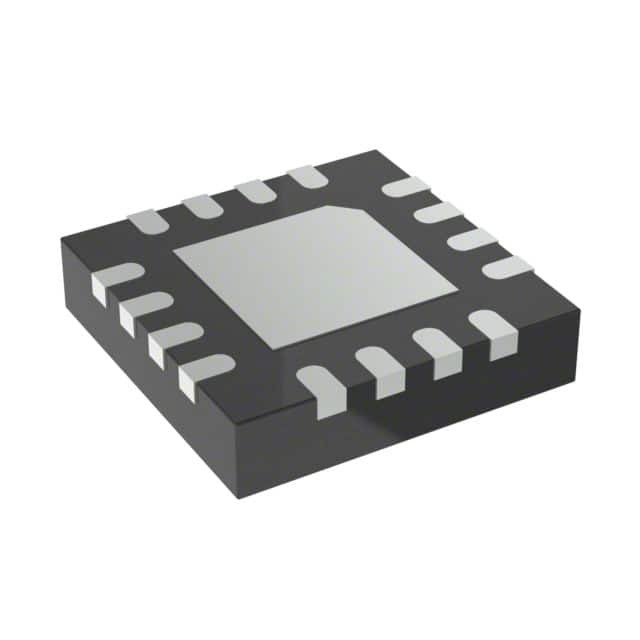

ADRF5019BCPZN-R7

SKU: 51364

Manufacturer: Analog Devices

RF Switch SPDT 100MHz to 13GHz 25dB 16-Pin LFCSP EP T/R

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	180(Typ)
Frequency Band (MHz)	100 to 13000
Maximum Frequency (MHz)	13000
Minimum Isolation Voltage (dB)	25(Typ)
Maximum Insertion Loss (dB)	1.5(Typ)
Typical Input 1dB Compressed Power (dBm)	39
Technology	CMOS/LVTTL
Operating Supply Voltage-Min (V)	-2.75
Typical Operating Supply Voltage (V)	-2.5
Operating Supply Voltage-Max (V)	-2.25
High Control Voltage (V)	2 to 3.3
Typical Supply Current (mA)	0.0005
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	16
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	3
Package Width	3
PCB changed	16
