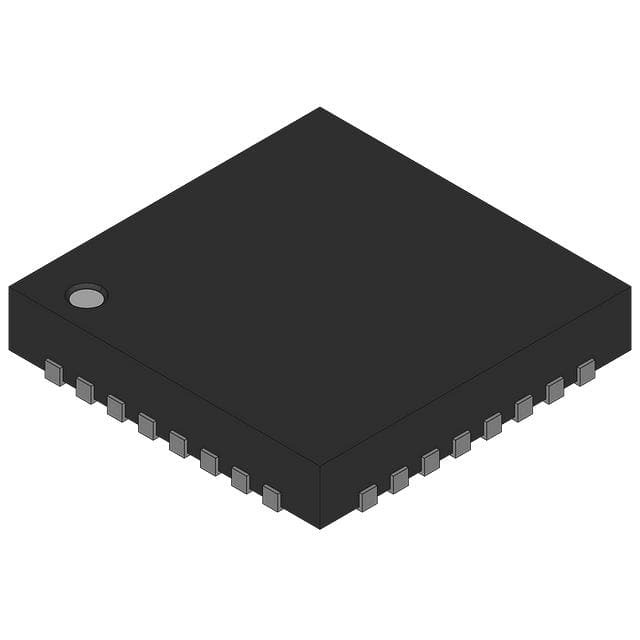

ADP2114ACPZ-R7

SKU: 144999

Manufacturer: Analog Devices

Conv DC-DC 2.75V to 5.5V Synchronous Step Down Dual-Out 0.8V/1.2V/1.5V/1.8V/2.5V/3.3V/0.6V 2A/4A 32-Pin LFCSP EP T/R

6190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	300
Switching Regulator	Yes
Number of Outputs	2
Output Voltage (V)	0.8
Maximum Output Current (A)	2
Minimum Input Voltage (V)	2.75
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.75 to 5.5
Typical Switch Current (A)	3.3
Typical Quiescent Current (uA)	3000
Line Regulation	0.05%/V(Typ)
Load Regulation	0.03%/A(Typ)
Efficiency (%)	95
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	32
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
