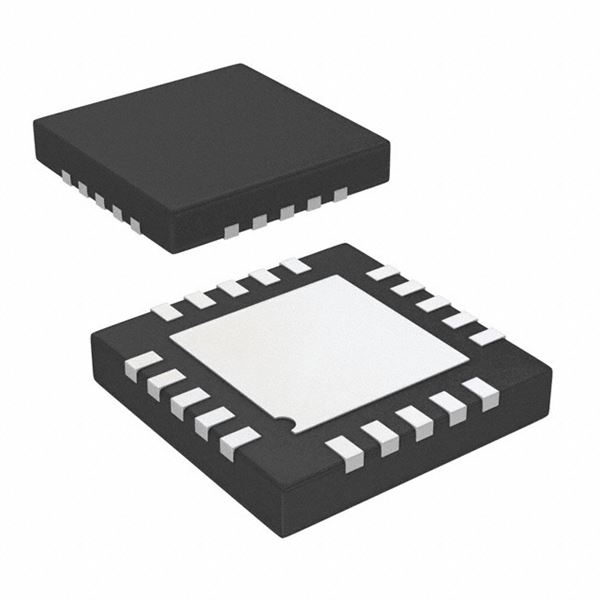

ADP1828ACPZ-R7

SKU: 30019

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 1200kHz 20-Pin LFCSP EP T/R

2700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.6 to 20.4
Maximum Switching Frequency (kHz)	1200
Minimum Input Voltage (V)	1
Maximum Input Voltage (V)	24
Operating Supply Voltage (V)	1 to 24
Typical Quiescent Current (mA)	1.5
Minimum Switching Frequency (kHz)	300
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	20
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	20
