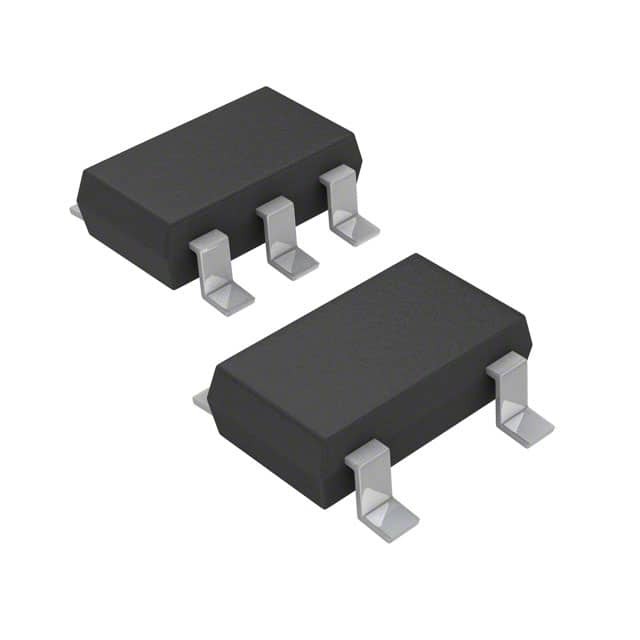

ADP123AUJZ-R7

SKU: 46024

Manufacturer: Analog Devices

LDO Regulator Pos 0.8V to 5V 0.3A 5-Pin TSOT T/R

3270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Process Technology	CMOS
Output Type	Adjustable
Output Voltage (V)	0.8 to 5
Maximum Output Current (A)	0.3
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.150@300mA
Line Regulation	0.05%/V
Load Regulation	0.0005%/mA(Typ)
Typical Ground Current @ Full Load (mA)	0.17
Junction to Ambient	170°C/W
Special Features	Thermal Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSOT
Pin Count	5
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.6
PCB changed	5
