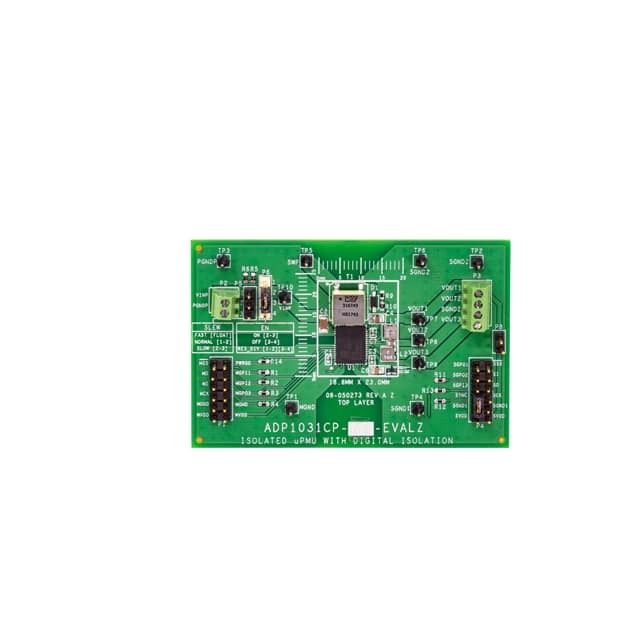

ADP1031ACPZ-4

SKU: 86564

Manufacturer: Analog Devices

Digital Isolator Logic 7-CH 100Kbps 41-Pin LFCSP EP Tray

3970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	7
Maximum Data Rate	100Kbps
Maximum Rise Time (ns)	2.5(Typ)
Maximum Fall Time (ns)	2.5(Typ)
Minimum Pulse Width (ns)	100
Maximum Pulse Width Distortion (ns)	0.25(Typ)
Output Type	Logic
Operating Supply Voltage-Max (V)	60
Operating Supply Voltage-Min (V)	4.5
Minimum Isolation Voltage (Vrms)	2500
Maximum Propagation Delay Time (tPHL) (ns)	11
Maximum Propagation Delay Time (tPLH) (ns)	11
Maximum Working Insulation Voltage	265Vp
Maximum Quiescent Supply Current (mA)	1.77(Typ)
Maximum Power Dissipation (mW)	216.5(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Minimum Common Mode Rejection (kV/us)	100(Typ)
Coupling Type	Magnetic Coupling
Original Package	LFCSP EP
Pin Count	41
Terminal Form	Surface Mount
Package Height	0.93
Package Length	9
Package Width	7
