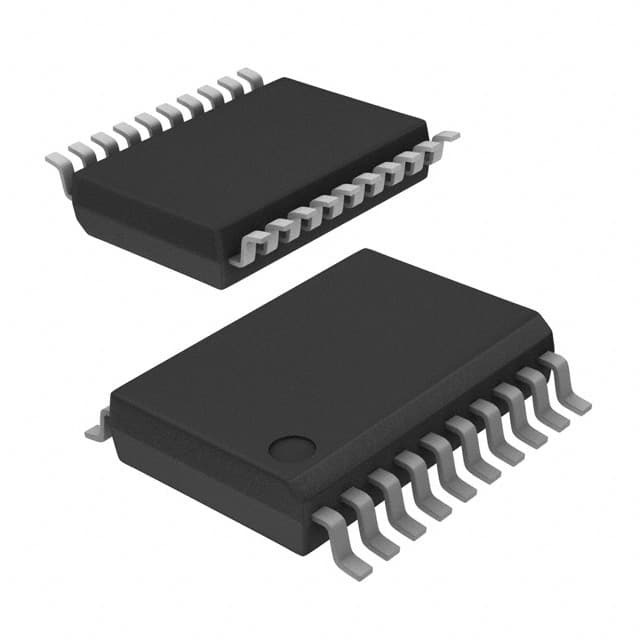

ADN4651BRSZ-RL7

SKU: 114851

Manufacturer: Analog Devices

LVDS Buffer 600Mbps 0.45V 20-Pin SSOP T/R

3170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Buffer
Transmission Data Rate (Mbps)	600
Maximum Propagation Delay Time (ns)	4.5
Input Signal Type	LVDS
Operating Supply Voltage-Min (V)	2.375
Operating Supply Voltage-Max (V)	2.625
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0.1(Max)
Maximum Differential Output Voltage (V)	0.45
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	5
Maximum Power Dissipation (mW)	2780
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	SSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.75
Package Length	7.2
Package Width	5.3
PCB changed	20
