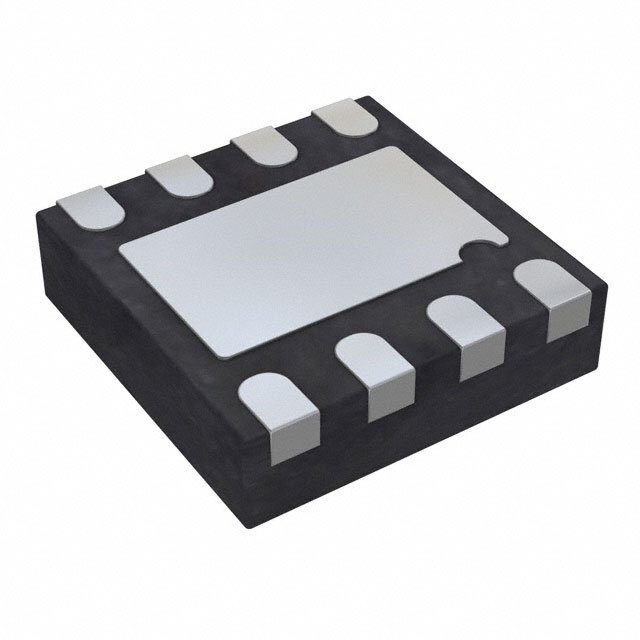

ADM7155ACPZ-03-R7 Analog Devices

ADM7155ACPZ-03-R7

SKU: 86560

Manufacturer: Analog Devices

LDO Regulator Pos 1.2V to 2.9V 0.6A 8-Pin LFCSP EP T/R

Download sample

Request Free Samples

1880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.5
Output Type	Adjustable
Output Voltage (V)	1.2 to 2.9
Maximum Output Current (A)	0.6
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	5.5
Line Regulation	0.02%/V
Load Regulation	0.3%/A(Typ)
Junction to Ambient	36.7°C/W
Junction to Case	23.5°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	8
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	8
