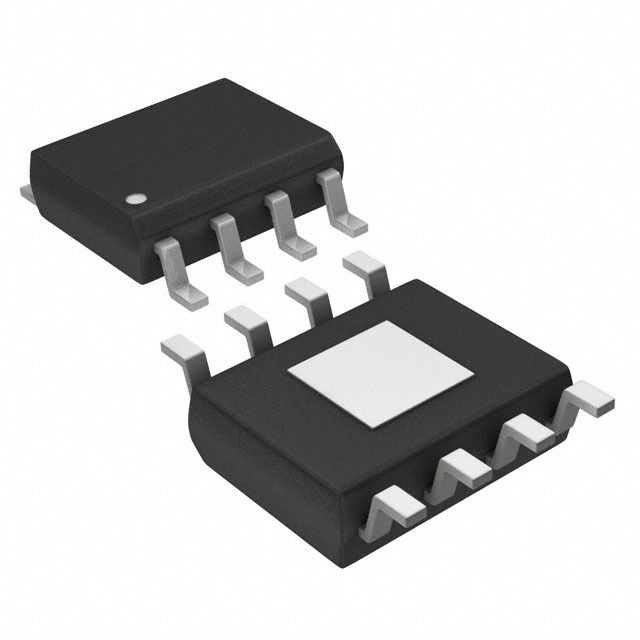

ADM7150ARDZ-3.0-R7

SKU: 86562

Manufacturer: Analog Devices

LDO Regulator Pos 3V 0.8A 8-Pin SOIC N EP T/R

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	3
Maximum Output Current (A)	0.8
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	16
Maximum Dropout Voltage @ Current (V)	0.5@400mA
Line Regulation	0.01%/V
Load Regulation	0.4%/A(Typ)
Junction to Ambient	36.9°C/W
Junction to Case	27.1°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOIC N EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	4.9
Package Width	3.9
PCB changed	8
