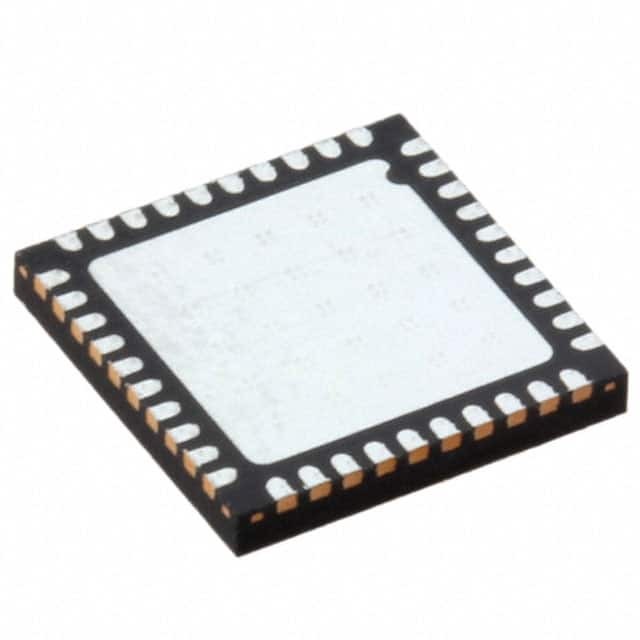

ADL5205ACPZ-R7

SKU: 58409

Manufacturer: Analog Devices

RF Amp Dual VGA 1.7GHz 5.25V 40-Pin LFCSP EP T/R

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991b.
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Variable Gain Amplifier
Number of Channels per Chip	2
Maximum Operating Frequency (MHz)	1700(Typ)
Typical 3dB Bandwidth (MHz)	1700
Typical Power Gain (dB)	26
Typical Output Power (dBm)	17.7@500MHz
Typical Output Intercept Point (dBm)	36@500MHz
Typical Noise Figure (dB)	8.2@500MHz
Operating Supply Voltage-Max (V)	5.25
Minimum Single Supply Voltage (V)	3.15
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.25
Power Supply Type	Single
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	40
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
