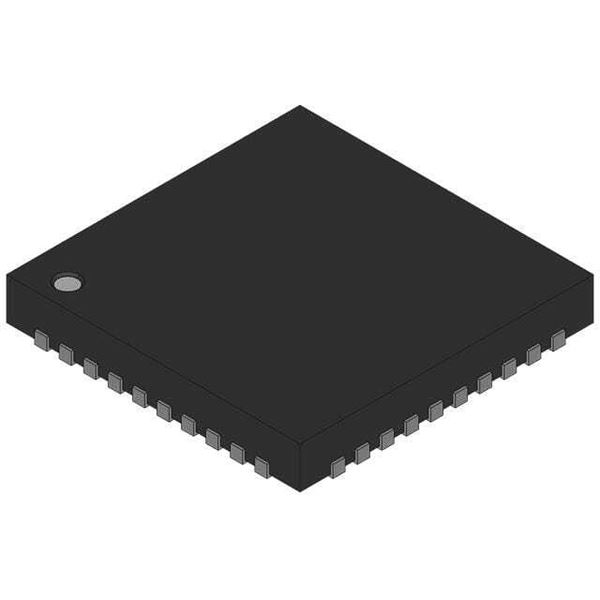

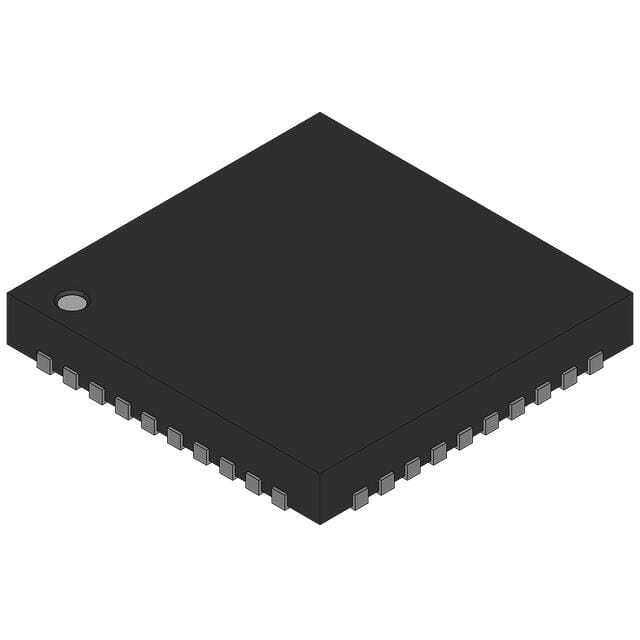

ADL5202ACPZ-R7

SKU: 60239

Manufacturer: Analog Devices

RF Amp Dual VGA 5.5V 40-Pin LFCSP EP T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Variable Gain Amplifier
Number of Channels per Chip	2
Typical 3dB Bandwidth (MHz)	700
Typical Gain Flatness (dB)	0.285
Typical Power Gain (dB)	20
Typical Output Power (dBm)	19.5@140MHz
Typical Output Intercept Point (dBm)	45@300MHz
Maximum Input Return Loss (dB)	-17.7(Typ)
Maximum Output Return Loss (dB)	-16.5(Typ)
Typical Noise Figure (dB)	7.5@140MHz
Operating Supply Voltage-Max (V)	5.5
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	1600
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	40
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
