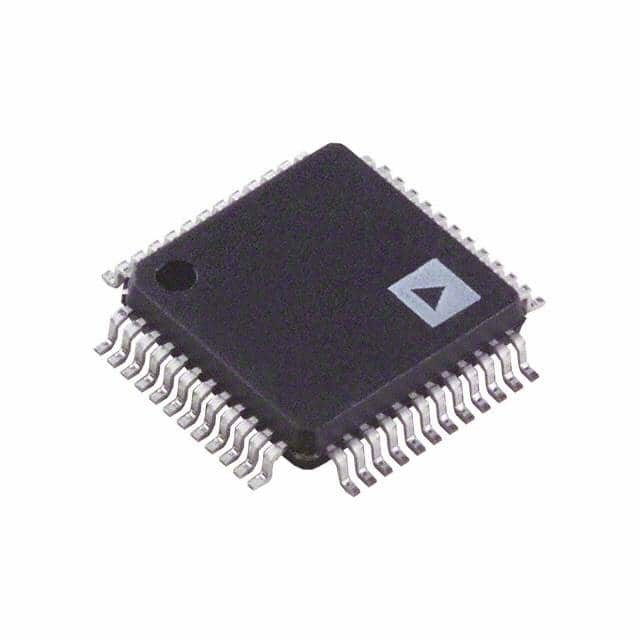

ADG732BSUZ

SKU: 17651

Manufacturer: Analog Devices

Analog Multiplexer Single 32:1 48-Pin TQFP Tray

1210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	32
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	34@5V
Maximum Turn-On Time (ns)	48@3V
Maximum Turn-Off Time (ns)	26@±2.5V
Maximum Frequency (25°C) @ Vcc (MHz)	18(Typ)@5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±2.5
Maximum Dual Supply Voltage (V)	±2.75
Typical Supply Current (mA)	0.01@5.5V
Maximum Supply Current (mA)	0.02@5.5V@-40C to 125C
Maximum High Level Output Current (mA)	30
Maximum On Resistance (Ohm)	11@3V
Maximum On Resistance Range (Ohm)	10 to 25
Propagation Delay Test Condition (pF)	35
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Pin Count	48
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	48
