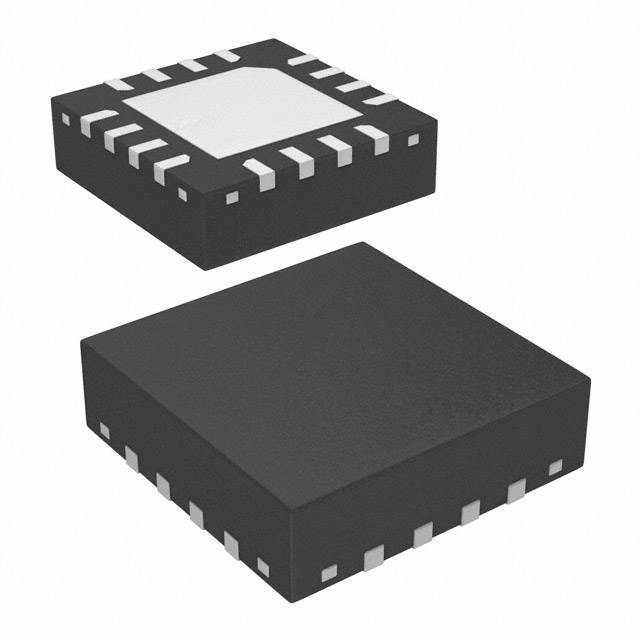

ADG659YCPZ

SKU: 150335

Manufacturer: Analog Devices

Analog Multiplexer Dual 4:1 Automotive 16-Pin LFCSP EP Tray

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	2
Number of Inputs per Chip	8
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	115@±5V
Maximum Turn-On Time (ns)	370@3.6V
Maximum Turn-Off Time (ns)	80@3.6V
Maximum Frequency (25°C) @ Vcc (MHz)	400(Typ)@±5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±2
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±6
Typical Supply Current (mA)	0.00001@5.5V
Maximum Supply Current (mA)	0.001@5.5V@-40C to 125C
Maximum High Level Output Current (mA)	20
Maximum On Resistance (Ohm)	300@3.6V
Maximum On Resistance Range (Ohm)	250 to 400
Propagation Delay Test Condition (pF)	35
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Automotive
Packing Method	Tray
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	16
