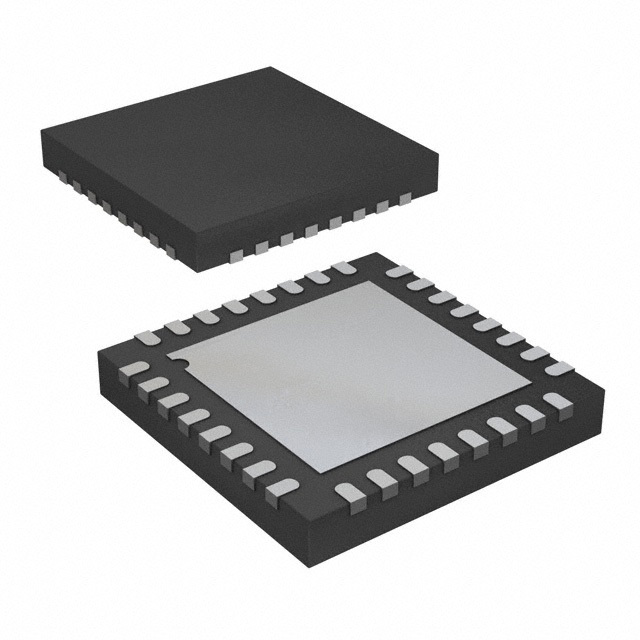

ADG1407BCPZ-REEL7

SKU: 114825

Manufacturer: Analog Devices

Analog Multiplexer Single 8:1 32-Pin LFCSP EP T/R

3720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	16
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	160@±15V
Maximum Turn-On Time (ns)	335@±5V
Maximum Turn-Off Time (ns)	290@±5V
Maximum Frequency (25°C) @ Vcc (MHz)	70(Typ)@12V
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	16.5
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±16.5
Typical Supply Current (mA)	±0.000002@±5.5V
Maximum Supply Current (mA)	±0.001@±5.5V@-40C to 125C
Maximum On Resistance (Ohm)	25@±4.5V
Maximum On Resistance Range (Ohm)	25 to 35
Propagation Delay Test Condition (pF)	35
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	32
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
