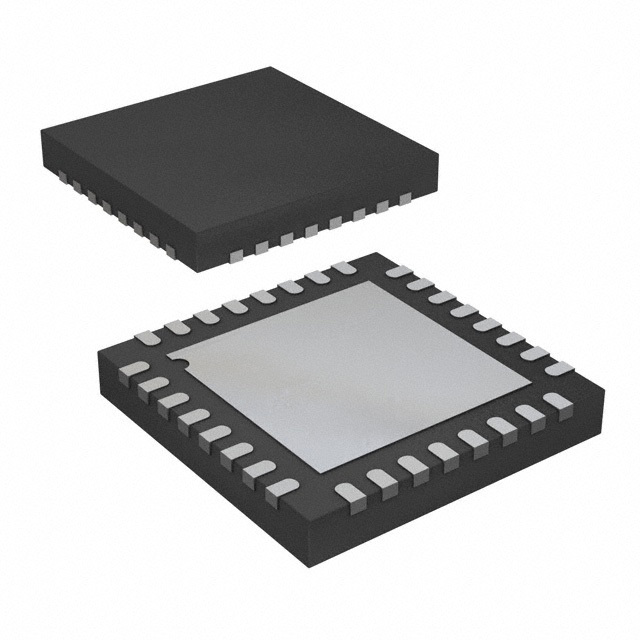

ADG1207YCPZ-REEL7

SKU: 121964

Manufacturer: Analog Devices

Analog Multiplexer Dual 8:1 32-Pin LFCSP EP T/R

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	2
Number of Inputs per Chip	16
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	130@±15V
Maximum Turn-On Time (ns)	100@12V
Maximum Turn-Off Time (ns)	110@12V
Maximum Frequency (25°C) @ Vcc (MHz)	490(Typ)@±15V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	16.5
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±16.5
Typical Supply Current (mA)	0.26@16.5V/-0.000002@-16.5V
Maximum Supply Current (mA)	0.475@16.5V/-0.001@-16.5V@-40C to 125C
Maximum On Resistance (Ohm)	475@10.8V
Maximum On Resistance Range (Ohm)	400 to 1000
Propagation Delay Test Condition (pF)	35
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	32
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	5
Package Width	5
PCB changed	32
