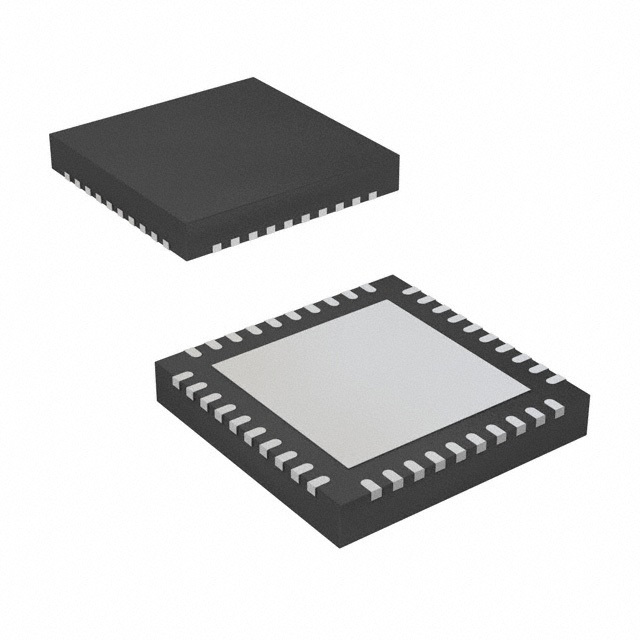

ADAS3022BCPZ-RL7

SKU: 86519

Manufacturer: Analog Devices

8-Channel Single ADC SAR 1Msps 16-bit Serial 40-Pin LFCSP EP T/R

3000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Process Technology	iCMOS
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	1Msps
Digital Interface Type	Serial (4-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Dual
Input Voltage	±24.576V
Minimum Dual Supply Voltage (V)	±14.25/4.75
Typical Dual Supply Voltage (V)	±15/5
Maximum Dual Supply Voltage (V)	±15.75/5.25
Maximum Supply Current	21
Maximum Power Dissipation (mW)	2000
Integral Nonlinearity Error	±5LSB
Full Scale Error	±9LSB
Signal to Noise Ratio	93dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	40
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.93
Package Length	6
Package Width	6
PCB changed	40
