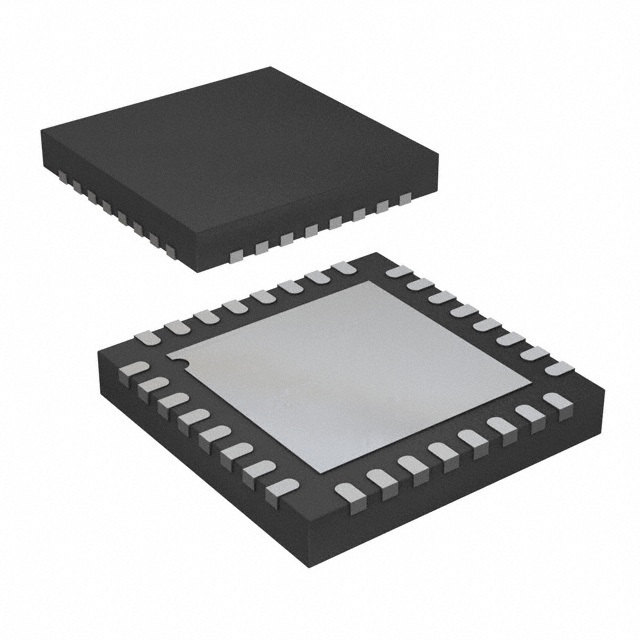

ADA8282WBCPZ-R7

SKU: 60197

Manufacturer: Analog Devices

SP Amp Variable Gain Amp Quad 3.6V Automotive 32-Pin LFCSP EP T/R

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Type	Programmable Gain Amplifier
Number of Elements per pcs	4
Number of Channels per Chip	4
Maximum Voltage Gain Range (dB)	35 to 50
Maximum Voltage Gain (dB)	36(Typ)
Minimum CMRR Range (dB)	80 to 85
Minimum CMRR (dB)	80(Typ)
Minimum PSRR (dB)	80
Output Type	Differential
Maximum Input Offset Voltage (mV)	3@3.3V
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	66.3@3.3V
Maximum Input Resistance (MOhm)	0.0017@3.3V
Maximum Power Dissipation (mW)	219
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	32
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
