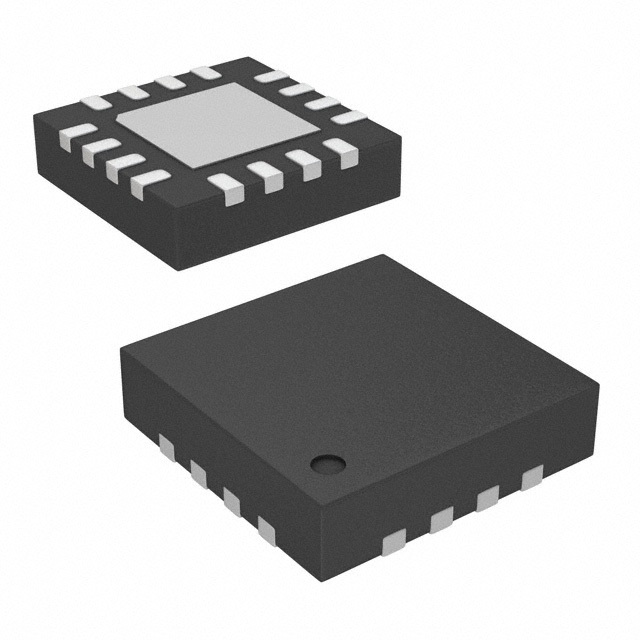

ADA4830-2BCPZ-R7

SKU: 72410

Manufacturer: Analog Devices

SP Amp Difference Amplifier Dual R-R I/O 5.5V Automotive 16-Pin LFCSP EP T/R

3200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Difference Amplifier
Number of Elements per pcs	2
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0(Typ)
Minimum CMRR Range (dB)	<60
Minimum CMRR (dB)	42
Minimum PSRR (dB)	53(Typ)
Typical Output Current (mA)	125@5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	2.9
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Resistance (MOhm)	0.0067(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	16
