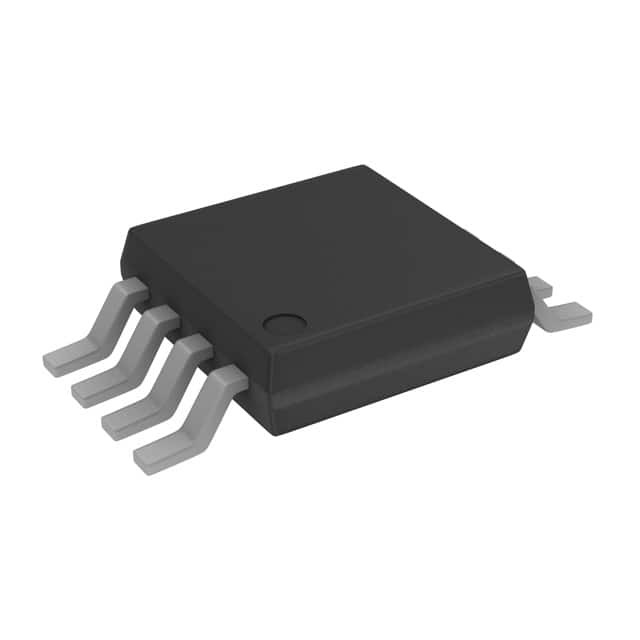

ADA4666-2ARMZ-R7

SKU: 44183

Manufacturer: Analog Devices

Op Amp Dual Low Power Amplifier R-R I/O ±9V/18V 8-Pin MSOP T/R

10720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	4@18V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	18
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±2.5
Maximum Dual Supply Voltage (V)	±9
Maximum Input Offset Current (uA)	0.000003@18V
Maximum Input Bias Current (uA)	0.000003@18V
Maximum Quiescent Current (mA)	1.45@18V
Power Supply Type	Single
Typical Slew Rate (V/us)	2.2@18V
Typical Input Noise Voltage Density (nV/rtHz)	18@18V
Typical Voltage Gain (dB)	130
Minimum PSRR (dB)	130
Typical Gain Bandwidth Product (MHz)	4
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
